1000 Series-Low Profile Dock & Components

Float Sections

Model FS1120

  • 90″ x 120″ x 10″(228.6 cm x 304.8 cm x 25.4 cm)
  • Weight: 400 lbs. (181.4 Kg)
  • Color: Gray Oak

The FS1120 low profile section is molded of maintenance-free polyethylene with connector sockets for simple and slip-fit connectors.

Model FS1060

  • 60” x 45” x 10”
  • 152.4 cm x 114.3 cm x 25.4 cm
  • Weight: 86 lbs. (39 Kg)
  • Color: Gray Oak

The primary component of the Connect-A-Dock system is molded of maintenance-free polyethylene with connector sockets for simple and extend-able slip-fit connectors.

Model FS1030

  • 30” x 45” x 10”
  • 76.2 cm x 114.3 cm x 25.4 cm
  • Weight: 50 lbs. (22.68 Kg)
  • Color: Gray Oak

The primary component of the Connect-A-Dock system is molded of maintenance-free polyethylene with connector sockets for simple and extend-able slip-fit connectors.

Model CFS1010

  • 44” x 33” x 10”
  • 111.8 cm x 83.8 cm x 25.4 cm
  • Weight: 30 lbs. (13.6 Kg)
  • Color: Gray Oak

The Corner Float Section adds strength and stability to the fingers of your dock, making it more attractive and providing more walking space.

Components

Float Connector

Model FC1010

Float Connectors are used to attach Float Sections. They are hidden from view in slip-fit connector sockets and secured with two bolts, washers and bushings. (hardware included)

Extra Hardware

Model EH1000 (for docks)

 Extra bolt, diamond washer and bushing for those times when extra dock hardware is needed.

Float Connector

Model FC1010

Float Connectors are used to attach Float Sections. They are hidden from view in slip-fit connector sockets and secured with two bolts, washers and bushings. (hardware included)

Pole Cover

Model PC1002

Cover those unsightly anchor pole tops with the easily-installed and durable Pole Cover.

Finishing Connector

Finishing Connector Model FC1000

Give the side walls of your 1000 Series Connect-A-Dock an attractive finished appearance and keep debris out of the connector sockets by filling them with Finishing Connectors.  (Hardware included)

Accessory Connector

Accessory Connector Model AC1000

Add functional and attractive accessories to the outside walls of your dock with the Accessory Connector. Items such as oak boards and bumpers can be fastened to the Accessory Connector quickly and easily.

Cleat

Model 8C1020

  • 7” x 1.35” (17.78 cm x 3.43 cm)

Secure anything to your dock with a durable Cleat. Molded to slip-fit in the top of the connector sockets of the Float Sections, the Cleat bolts to the structure for a strong, reliable attachment. (hardware included)

Solar Cleat

Model LL-SCL-CAD

  • 8″ x 2.125″ (20.32 cm x 5.397 cm)

Secure your boat & light up the dock edge.

(Hardware included)

Extra Flotation

Model EF1010

This accessory adds up to 60 lbs. of extra buoyancy for the extended fingers of your dock (including the base of the dock that supports the gangway). It easily slips-fits into the air chamber beneath the Float Sections.

Stationary Swim Ladder

Model SL2001

  • 27” x 59.25” (68.6 cm x 150.5 cm)

Provide swimmers easy access in and out of the water.

Swim Ladder

Model SL1000

  • 21″ x 86″ (53.34 cm x 218.44 cm)

Provide swimmers easy access in and out of the water with the flip-up aluminum Swim Ladder. Its hinged design lets you lift it out of the water for easy cleaning and storage. (hardware included)

Kayak Rack

Model KR1020

6′ x 18.25″(182.9 cm x 46.36 cm)

Store two Kayaks on your dock.

Self-Wicking Planter

Model SWP1020

In minutes you can turn your dock into a colorful water front garden. Enjoy your favorite flowers and plants while you relax on your dock. Self-Wicking Planter with Pole Connector

Model PT1020 and PC1010

Fish Cleaning Station

Model FCS1020

  • 38″ x 18″ Top(96.5 cm x 45.7 cm)

Dress fish at the waters edge after a day of fishing.

Options: Knife Rack, Hose Holder & Cup Holder

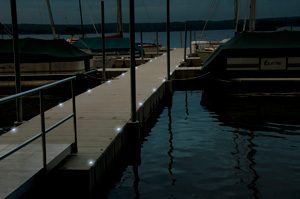

Solar Diamond Light

Model SLD1020

Light up the dock edge at night.

Two Lights per package

3.36” x 1.68 x 7.73”

(8.54 cm x 4.27 cm x 19.6 cm)

Away Geese Land

Model AWG1020

Disrupts geese sleep patterns causing them to move to another pond.

Harmless to geese

  • Solor powered
  • Maintenance free
  • Covers 3.5 acres
  • Dock or Land

Floating Away Geese Land

Model AWGW1020

  • Harmless to geese
  • Solar powered
  • Maintenance free
  • Covers 3.5 acres
  • Water

Deck Boxes

Model DBT8000

Triangular Dock Box
48.25″ long x 28″ wide x 30″ high

Model DBT8004

Triangular Dock Box
50″ long x 29.5″ wide x 32.5″ high

Model DBT8006

Rectangular Dock Box
48.25″ long x 26.5″ wide x 29″ high

Model DBT8011

Triangular Dock Box
59.25″ long x 34.5″ wide x 28.5″ high

Unlike boats, dock boxes should not be made of fiberglass. Fiberglass needs waxing or it will chalk, spider web crack and retain dirt. On impact, fiberglass will crack and deform.

Trionic extra heavy-duty dock boxes are rotationally cast in a mold with impact-resistant polyethylene resin. The smooth exterior surface repels dirt without waxing.

  • Extra heavy duty construction in our Dock Box
  • Lockable reinforced cover
  • Easy to assemble nylon hinges with stainless steel hardware
  • Cover restrained with stainless steel cables
  • Long term ultraviolet inhibitors protect against sun rays

Edge Bumper

Model EB1020

  • 2.5” x 3.5” x 8’ (6.35 cm x 8.89 cm x 243.84 cm)

Provides and edge to keep items from rolling off or used as a wheel chair stop

The versatile Pole Connector slip-fits into the exposed connector sockets of Float Section and can accommodate a variety of anchoring methods, depending on your location and needs. (hardware included)

Guardrails

Model GR1026

  • 26″ (66 cm)

Guardrails are sturdy and easy to assemble. Four sizes correspond with modularity of dock letting you surround any size dock. (2 Accessory Connectors and Hardware included)

Model GR1041

  • 41″ (104.1 cm)

Aluminum railing that is easily attached to your dock for added safety. (2 Accessory Connectors and Hardware included)

Model GR1056

  • 56″ (142.24 cm)

(2 Accessory Connectors and Hardware included)

Aluminum Gangway with Handrails

Model GWA3X8 – 3′ x 8′ x 3′ 91.4 cm x 243.8 cm x 91.4 cm

Model GWA3X12 –  3′ x 12′ x 3′ 91.4 cm x 365.8 cm x 91.4 cm

Model GWA3X16 – 3′ x 16′ x 3′ 91.4 cm x 487.7 cm x 91.4 cm

Model GWA4X8 – 4′ x 8′ x 3′ 121.9 cm x 243.8 cm x 91.4 cm

Model GWA4X12 – 4′ x 12′ x 3′ 121.9 cm x 365.8 cm x 91.4 cm

Model GWA4X16 – 4′ x 16′ x 3′ 121.9 cm x 487.7 cm x 91.4 cm

Choose between three lengths, and two widths. Connect to either 1000 Series – Low Profile or 2000 Series -High Profile in minutes. Simply attach the aluminum hinge with the bolts to your dock. Handrails included (hardware included)

Gangway 4' X 4' or 4' X 8'

4′ x 4′ – Model GW1024

4” x 4” (126.9 cm x 121.92 cm)

4′ x 8′ – Model GW1028

4” x 8” (121.92 cm x 250.95 cm)

4′ x 12′ – Model GW1032

4” x 12” (121.92 cm x 365.76 cm)
 Choose between three lengths, 4’ x 4’, 4’ x 8’or 4’ x 12’, with slip resistant panels that allow water to drain off and light to pass thru. Connect to either 1000 Series – Low Profile or 2000 Series -High Profile in minutes. Only one person is needed for assembly – simply attach the galvanized hinge with two bolts and two more for the light weight aluminum framing. Panel(s) are then slid into the framing slots and its ready to use. (hardware included)

Anchoring

2" (5.08 cm) Dead Man Collar

Model DM1002 Note:1000 Series-Low Profile

Anchor your dock without poles. Slip the long end of the Dead Man Collar in the Pole Connector on the side of the dock and rig a weighted chain through the bottom of the collar. Fasten the chain by setting a link in the groove in the top of the collar. (Chain and weight not included)

Stiff Arm Bracket

Model SAB1020

Anchor your dock without poles are weights with these fittings. The Stiff Arm Bracket is attached to the dock and is fitted to a connecting pole. The other end of the connecting pole attaches to a ground anchor on shore.

Stiff Arm Fittings

Model SAF1020

Anchor your dock without poles are weights with these fittings. The Stiff Arm Bracket is attached to the dock and is fitted to a connecting pole. The other end of the connecting pole attaches to a ground anchor on shore.

Deep Water Hardware

Model DW1010 Note:1000 Series only

Ideal for anchoring swim platforms, the Deep Water Hardware set includes eyebolts and fasteners for attaching weighted chains to the underside of the dock. (Hardware included)

Piling Loops

Attach your floating dock to a permanent structure with the Piling Loop. Bolt the bracket to the deck of the dock, loop the support around the piling (up to 18″ (45.72 cm) in diameter) and connect back to the bracket. Great for fluctuating water levels. (Hardware included)

10″ (25.4 cm) PL1010
12″ (30.48 cm) PL1012
14″ (35.56 cm) PL1014
16″ (40.64 cm) PL1016
18″ (45.72 cm) PL1018

Custom sizes available

1000 Series Metal Accessory Connector

Model 4-5021

4.5” x 5.5” x 10” (11.4 cm x 14 cm x 25.4 cm)

Add accessories to dock sections or connect to other docks.

1000 Series Connector Male Hinge

Model 4-5022

6.5” x 5.5” x 10” (16.5 cm x 14 cm x 25.4 cm)

Attach 1000 Series float sections to other docks at different heights.

Female Hinge

Model 4-5024

5” x 3” x 12.75” (12.7 cm x 7.6 cm x 32.4 cm)

Attach 1000 Series float sections to other docks.

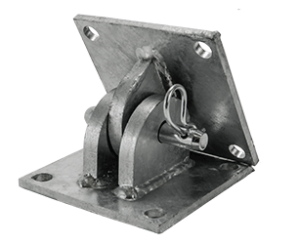

5X5 Hinge

Model 5×5 Hinge Male – 4-5025

Model 5×5 Hinge Female – 4-5023

Model Pin/Clip – 401-5026

5” x 5” x 3.5” (12.7 cm x 12.7 cm x 8.9 cm)

Attach 1000 Series float sections to other docks
